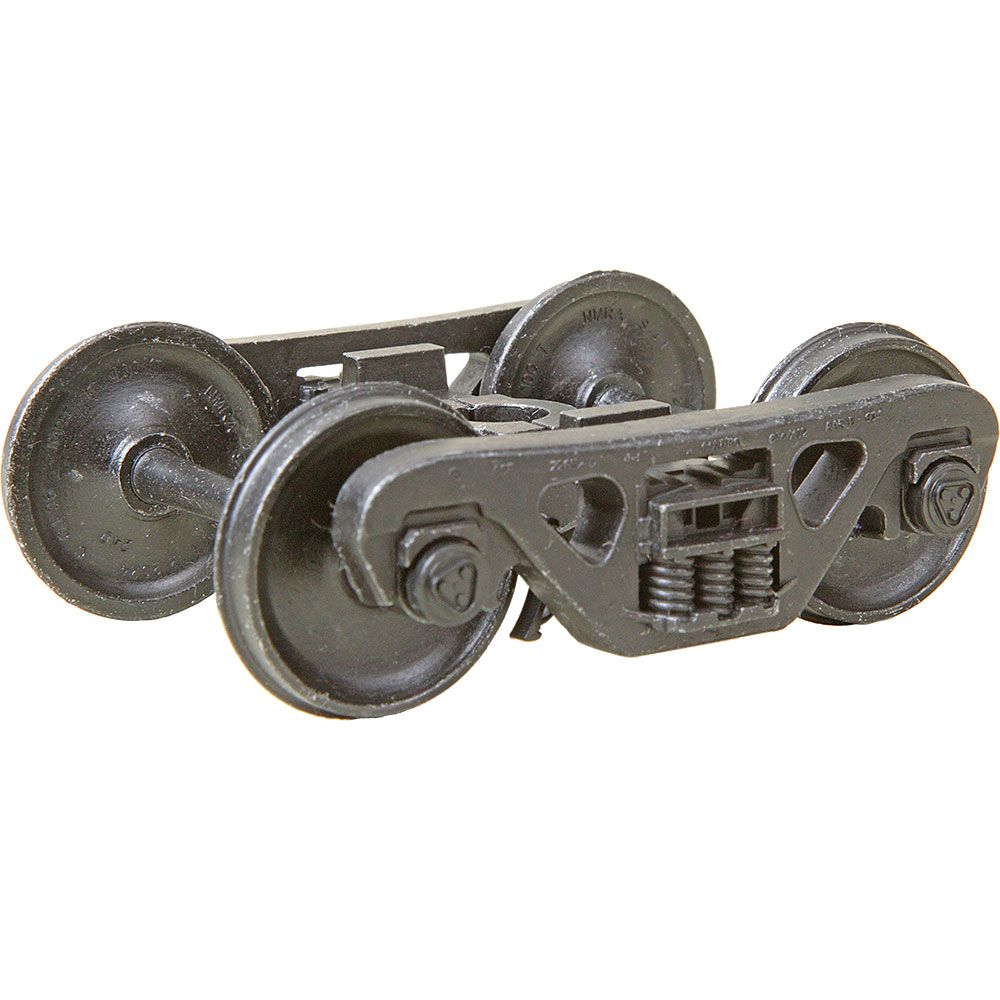

#759 O Scale 2 Rail A.S.F 100-ton Roller Bearing Metal Trucks with 36" Smooth Back Metal P48 Wheels

#759 O Scale 2 Rail A.S.F 100-ton Roller Bearing Metal Trucks with 36" Smooth Back Metal P48 Wheels
O-Scale
100-Ton Freight Truck

1 Pair

Mounts with a #4-56 x 3/8 screw. or optional #770 Bolstor Adapter Sold Seperatly

Used from the modern diesel era to present day.

The ASF® 100-ton Roller Bearing Truck is from the modern diesel era. It has standard 36-inch wheels and a longer wheelbase than the 50 or 70-ton roller bearing trucks. Our model is a faithful reproduction of the American Steel Foundries® Ride Control® truck. This truck is currently in use under a variety of rolling stock in North America.

Truck Features
• All Metal Non-Magnetic 2 Piece Self Equalizing Trucks
• O Scale 36 in. Smooth Back All Metal Non-Magnetic Black P48 Wheels with Free Rolling Insulated Axles
• Clip on pads & brake rigging
• Bearing caps rotate
• Mounting Adapters for Protocraft & Atlas Included
• Manufactured and assembled entirely in the U.S.A.
• Patent number 7,434,518 B2
• NMRA Conformance


Truck Mounting Adapters Not Required for
Intermountan
Weaver

Truck Mounting Adapters Included
Protocraft
Older Atlas
Newer Atlas

Truck #770 Bolstor Adapter Sold Seperatly
Lionel (metal or plastic floor)
MTH (metal or plastic floor)
Rail King (metal or plastic floor)
K-Line (metal or plastic floor)
Williams (metal or plastic floor)

Once Kadee trucks have been fitted to the car, always check the coupler height. Coupler height modification will probably be required due to non-standardized original equipment manufacturing in O-Scale. Always check coupler height and trip pin clearance using the #812 Kadee® Coupler Height Gauge for O-Scale, and check for the correct coupler height and trip pin clearance. If needed only use a Dry Graphite Lubricant such as our #231 “Greas-em” to lubricate the trucks couplers or moving parts.

Disclaimer: These instructions are guidelines for adapting Kadee® all metal 2-piece trucks to O-Scale rolling stock. Some additional modifications may be required and there is no express warranty that Kadee® trucks will work in all applications.

#759 Instructions

UPC: 765484007593
