#12 - 20 pair #58 Couplers (Superseded by #58-25)

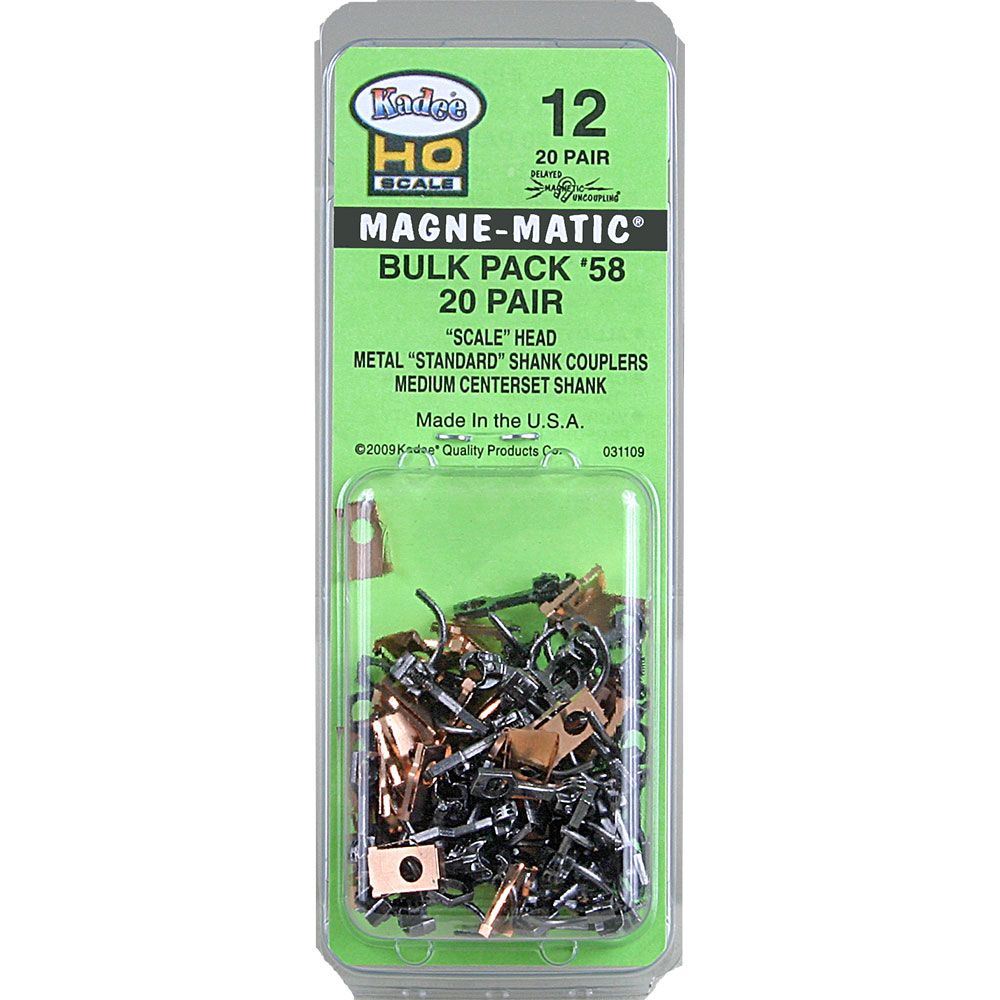

#12 HO Scale Bulk Pack - 20 pair #58 "Scale" Metal Couplers - Medium (9/32") Centerset Shank

---

Discontinued. Superseded by #58-25

Renumberd to /Replaced by #58-25

This industry leading coupler features an all metal standard coupler, and #634 standard centering spring. The #58 Magne-Matic® "Scale" Metal Coupler may be mounted with the #213, #232, #234, #242 Gearboxes (not included) or with other manufacturers cast-on coupler pockets.

The 158 Whisker® Coupler is equivalent to the #58 "Scale" Metal Coupler.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.

Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.

#58 Standard Coupler Instructions

20 pair per package
without Draft Gearboxes

UPC: 765484000129

  Made in the U.S.A.

HO-Scale

Package Includes:

• (20) Pair #58 "Scale" Metal Couplers - Medium Centerset Shank
• (20) Pair #634 Centering Spring NO.5® Style
• Extra #625 Knuckle Springs

Material	-   Metal
Shank Length	-   Medium (9/32") (center hole to back of coupler head)
Coupler Offset	-   Centerset
Knuckle Spring	-   #625
Centering System	-   Standard Shank
Centering Spring	-   #634 Centering Spring NO.5® Style
Head	-   "Scale" Head
Works In Place of	-  NO.5®, #28, #118, #119, #148, #158, & most medium centerset "clone" couplers.
Works With	-   #213, #232, #234, #242 draft gear boxes, & most manufacturer cast-on coupler pockets* (molded-on gearbox).

*Note: Some manufacturers now produce models with non-industry standard coupler pockets (molded-on gearbox). These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, a #158 Whisker® coupler should be used unsteady of a #58 coupler. The top of the #158 Whisker® coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.

Material	-   Insulated Plastic
Dimensions	-   29/64"L x 19/64"W x 7/64"H
Works With	-   NO.5®, #58, 20-Series and all Whisker® Couplers

Mounting Height	-   29/64"
Centerline	-   25/64"
Trip Pin Height	-   1/32"
Center Hole	-   2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes	-   0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)

Recommended Tools:

• #206 Insulated Multi-Purpose Coupler Height Gauge
• #231 Greas-em Dry Graphite Lubricant
• #237 Coupler Trip Pin Pliers
• #240 Double Headed Pin Vise
• #241 Dual Tool Manual Uncoupling Tool and Spring Pick
• #246 Tap (2-56) and Drills (#50 and #43)
• #780 Tap (0-80) and Drills (#55 and #52)
