#11105 Self Contained Remote Coupler Starter Kit (Single)

Kadee-RC
#11105 G-Scale Self Contained Remote Coupler Starter Kit (Single)
Patent Numbers 7,810,660 & 8,950,606

Coupler Designed for use with Locomotives, Freight & Passenger cars.

Self Contained Coupler Starter Kit is the easiest way of getting started with Kadee-RC Remote uncoupling system. The Kit includes the necessary components to convert 1 end of a car¹ (that is equipped with a factory Kadee #830 body mount platform) for remote uncoupling using the #11220 Actuated Body Mount Coupler² with Gearbox. The Gear Box contains a Mini Servo and has the same mounting hole dimensions as the #910 (#830, #906 Gear Boxes), which makes cars equipped with a factory Kadee #830 body mount platforms or previous conversion for #830 & #906 couplers very easy.

All you have to do is attach the Actuated Body Mount Coupler² with Gearbox to your #830 body mount platform¹, plug the Servo into a mounted #11110 Receiver Kit that has been "bound" to your #11215 Hand-Held Transmitter and you are ready to Remote Uncouple Anywhere*.

The car will be setup to remotely operate a single remote coupler, a second #11220 Coupler (sold separately) can be operated simultaneously with the use of a servo Y splitter cable (sold separately).
Your Kadee-RC Remote Couplers will operate and function with standard Kadee® G-Scale Couplers. The Remote Couplers will operate with the Kadee-RC #11215 Hand-Held Transmitter that is included or operate over Kadee® Magnetic uncouplers.

Note: #11110 Receiver Kit is equipped with a On-board 250mA Relay for lighting or other remote switching needs.

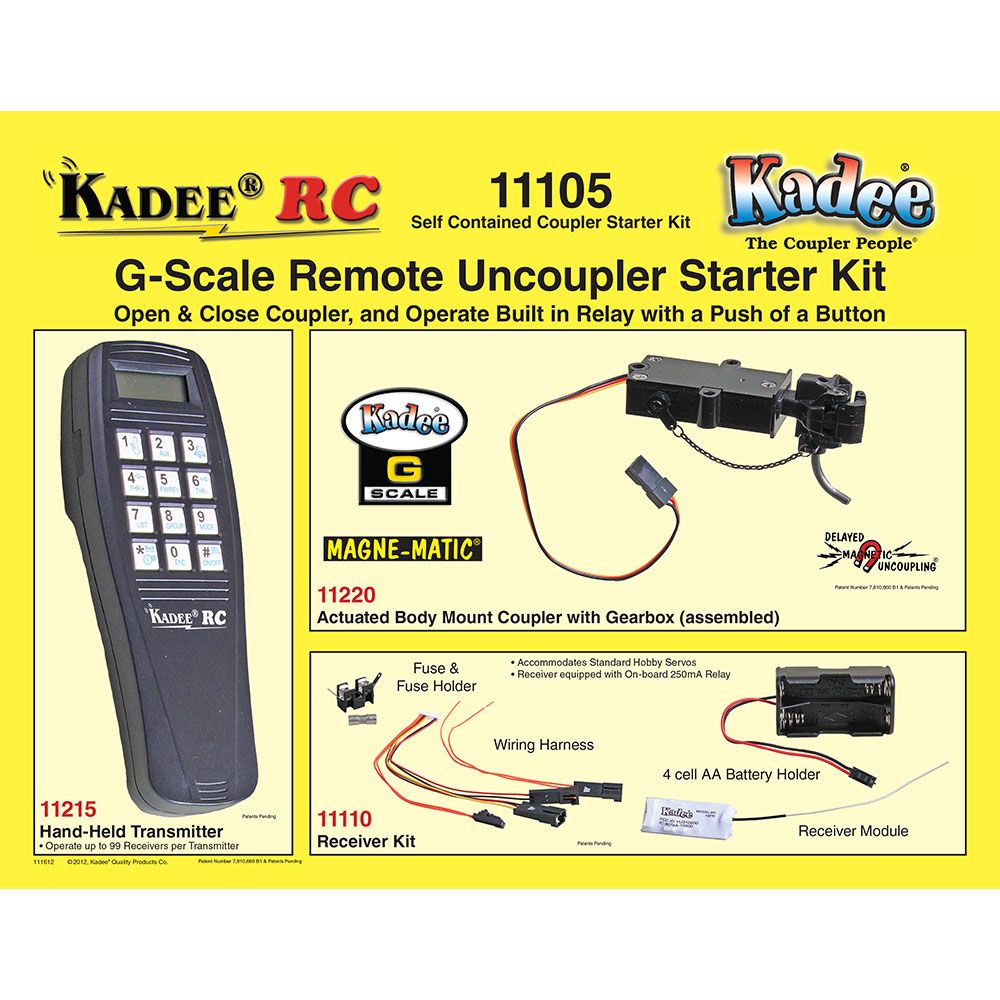

Includes: 1 - #11215 Hand-Held Transmitter (1 - Hand-held Transmitter)
1 - #11110 Receiver Kit (1 - Receiver Module, 1 - 4 cell AA Battery Holder, 1 - Wire Harness, 1 - Fuse & Fuse Holder)
1 - #11220 Actuated Body Mount Coupler with Gearbox (G-Scale) (1 - Actuated Body Mount Coupler with Gearbox (G-Scale) - Assembled)

Your Kadee-RC Remote uncoupling system equipped couplers will operate and function with standard Kadee® Couplers. The Remote Couplers will operate with #11215 Hand-Held Transmitter or operate over Kadee® Magnetic uncouplers.

Batteries Not Included
Powering the Receiver from any other power source will void the warranty.

More information on our Remote Coupling page.

* Limited uncoupling on curves.
¹ Some cars may require additional modification that the Basic Starter Kit is not equipped to convert.
² Use our #880 or 980 G-Scale Height Gauge to check for the correct coupler height and trip pin clearance.

Kadee® RC Transmitter & Receivers are FCC & IC Compliant.
Kadee® is restricted to selling & exporting products containing Kadee® RC Transmitter & Receivers in the USA and Canada.
Kadee® RC Transmitter & Receivers are not for use outside of USA and Canada. (Per Governmental FCC Regulations)

Dealers: Kadee® RC products are at second tier pricing.





UPC: 765484111054
