#800 O Scale Medium Centerset Plastic Couplers with Plastic Gearboxes - Red Oxide
$0.00
Availability:
Out of stock
SKU
800
This product has been discontinued
| We have discontinued this product permanently. Please refer to our current inventory. |

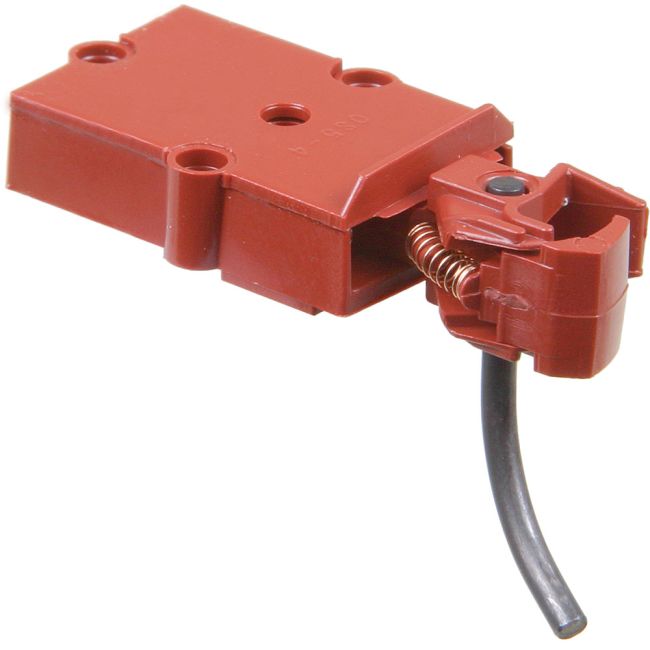

#800 Medium Centerset Plastic Couplers with Plastic Gearboxes - Red Oxide - O Scale
 |
 |
This industry leading coupler features Original Style Head Medium Centerset Plastic Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids. The #800 Plastic Coupler may be mounted with the included #817 Type Plastic Gearbox in Rust (red oxide).
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
One pair per package
UPC: 765484008002
Made in the U.S.A.
O-Scale
- Simple Drop in Design
- Trouble Free Operation
- Compatible with All Kadee® O-Scale Couplers
- World-Renowned Quality & Performance
- They just Last & Last & Last...
Package Includes:
- (2) Each #800 Original Style Plastic Couplers - Rust (red oxide) - Medium Centerset Shank
- (2) Each #817 Type Plastic Gearboxes & lids - Rust (red oxide)
- (3) Each #850 O Scale Centering Springs
#800 Plastic Coupler Features:
| Material | - Plastic - Rust (red oxide) |
| Shank Length | - Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox) |
| Coupler Offset | - Centerset |
| Centering Spring | - #850 O Scale Centering Springs |
| Knuckle Spring | - #845 O Scale Knuckle Springs |
| Head | - Original Style Head |
| Works In Place of | - #740, #745, #800, #801, #805, & #816 O Scale Medium Centerset Shank Couplers |
| Works With | - #817, #818, #819 Draft Gearboxes |
#817 Type - Rust (red oxide) Plastic Draft Gearboxes & Lids Features:
| Material | - Plastic - Rust (red oxide) |
| Dimensions | - 25/32"L x 1/2"W x 7/32"H |
| Works With | - #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers |
Mounting Specifications:
| Mounting Height | - 25/32" |
| Centerline | - 1 1/16" |
| Trip Pin Height | - 1/16" |
| Mounting Holes | - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
Recommended Tools:
- #812 O Scale Coupler Height Gauge
- #231 Greas-em Dry Graphite Lubricant
- #237 Coupler Trip Pin Pliers
- #240 Double Headed Pin Vise
- #241 Dual Tool Manual Uncoupling Tool and Spring Pick
- #246 Tap (2-56) and Drills (#50 and #43)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: CHOKING HAZARD - Small Parts - Not for children under 14 years.Kadee Quality Products Co. products are not toys and are not intended for children under 14 years old.
