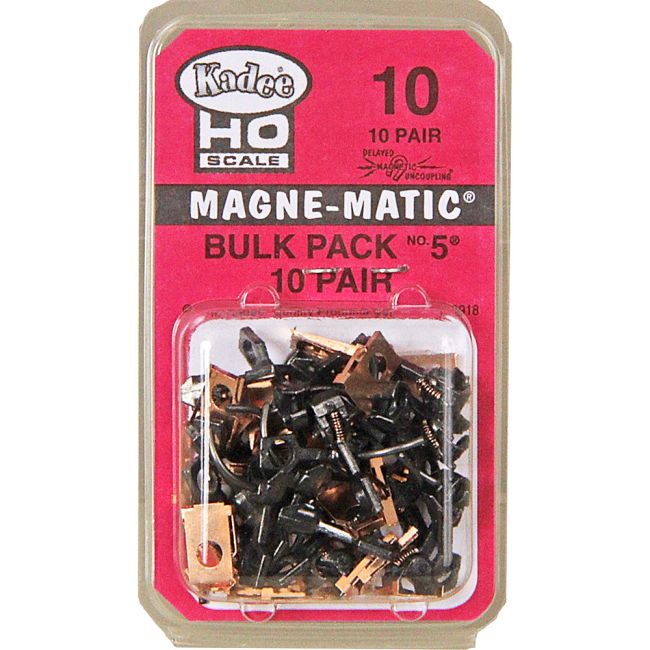

#10 HO Scale Bulk Pack - 10 pair #5 (NO.5®) Metal Couplers - Medium (9/32") Centerset Shank
#5 (No.5®) (10 pair) Metal Couplers (w/o Gearboxes)- Medium Centerset Shank
The one that started it all; the original No.5®. These industry leading couplers feature an all metal construction and standard centering springs. This is the perfect upgrade for the weak and drooping couplers that come on most factory rolling stock and locomotives. Others have tried to copy the robust design of the No.5® but nothing comes close to the real thing. Our classic #5 couplers are manufactured to the strictest tolerances to ensure reliable operation for decades. And they're still made right here in the USA with legendary Made In America quality.
The No.5® is interchangeable with the #28, #58, #118, #119, #148, #158, and most manufacturer's Medium Centerset OEM knuckle couplers.
Package Includes:
- (10) Pair No.5® Metal Couplers - Medium Centerset Shank
- (10) Pair #634 Centering Spring NO.5® Style
- (4) Spare #622 Knuckle Springs
- **Gearboxes not included**
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. For insulated couplers use #28 coupler.
Kadee® Magne-Matic® Couplers and Uncouplers are a complete system for your model railroad layout. We've designed every product to work harmoniously with the Magne-Matic® system so that you can focus on enjoying your hobby instead of troubleshooting issues. Magne-Matic® technology ensures smooth and reliable hands-free coupling and uncoupling anywhere.
Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.
UPC: 765484000105
Made in the U.S.A.
Distributors must purchase in bundles of 6
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: CHOKING HAZARD - Small Parts - Not for children under 14 years.
Kadee Quality Products Co. products are not toys and are not intended for children under 14 years old.
| No.5® Coupler Specifications | |
|---|---|
| Shank Length | Medium - 9/32" (center of mounting hole to back of coupler head) | Shank Offset | Centerset |
| Mounting Height | 29/64" |
| Centerline | 25/64" |
| Trip Pin Height | 1/32" |
| Head Style | Standard |
| Centering Spring | #634 |
| Knuckle Spring | #622 | Shank Material | Metal | Knuckle Material | Metal | Color | Black |
| Compatible Gearboxes | #213, #232, #234, #242, Most manufacturer molded-on gearboxes* |
*Note: Some manufacturers now produce models with non-industry standard coupler pockets (molded-on gearbox). These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, a #148 Whisker® coupler should be used instead of a No.5® coupler. The top of the #148 Whisker® coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.
