#143 HO Scale 140-Series Whisker® Metal Couplers with Gearboxes - Short (1/4") Centerset Shank
#143 Whisker® Metal Couplers - Short Centerset Shank
The next evolution of model train couplers starts and ends with the Kadee® Whisker® series of couplers. When we set out to improve upon the venerable No.5® we knew it had to be just as game-changing as the original. We took everything you loved about the No.5® and improved upon it. No more fumbling with centering springs. No more multi-piece assemblies. The Whisker® series of couplers is a true drop-in coupler. Use Kadee® Whisker® couplers in your next model and enjoy the most reliable and smooth coupling experience you've ever had. Always made right here in the USA with legendary Made In America quality.
The #143 is interchangeable with the #23 and most manufacturer's Short Centerset OEM knuckle couplers. For a #33 equivalent use the #143 in a #252 Gearbox.

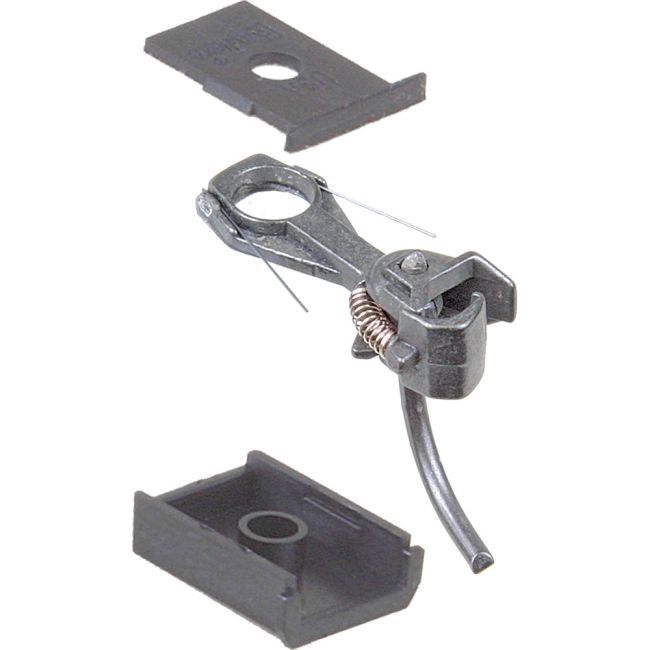

Package Includes:
- (2) Pair #143 Whisker® Metal Couplers - Short Centerset Shank
- (2) Pair #242 Snap-Together Gearboxes & Lids
- (2) Spare #622 Knuckle Springs
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #23 coupler.
Kadee® Magne-Matic® Couplers and Uncouplers are a complete system for your model railroad layout. We've designed every product to work harmoniously with the Magne-Matic® system so that you can focus on enjoying your hobby instead of troubleshooting issues. Magne-Matic® technology ensures smooth and reliable hands-free coupling and uncoupling anywhere.
Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.
UPC: 765484001430
Made in the U.S.A.
Distributors must purchase in bundles of 6
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: CHOKING HAZARD - Small Parts - Not for children under 14 years.
Kadee Quality Products Co. products are not toys and are not intended for children under 14 years old.
| #143 Coupler Specifications | |
|---|---|
| Shank Length | Short - 1/4" (center of mounting hole to back of coupler head) | Shank Offset | Centerset |
| Mounting Height | 29/64" |
| Centerline | 25/64" |
| Trip Pin Height | 1/32" |
| Head Style | Standard |
| Centering Spring | Whisker® |
| Knuckle Spring | #622 | Shank Material | Metal | Knuckle Material | Metal | Color | Black |
| Compatible Gearboxes | #213, #232, #234, #242, #252, #262, and Most manufacturer molded-on gearboxes* |
*Note: Some manufacturers now produce models with non-industry standard coupler pockets (molded-on gearbox). These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, the top of the #143 Whisker® coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.
