#1570 HO Scale Barber® S-2 70-Ton Roller Bearing Self Centering Trucks with 33" Smooth Back Code 88 Semi-Scale Wheels - HGC

$13.19
Availability: In stock
21 in stock
SKU
1570
#1570 HO Scale Barber® S-2 70-Ton Roller Bearing Self Centering Trucks with 33" Smooth Back Code 88 Semi-Scale Wheels - HGC is available to buy in increments of 1

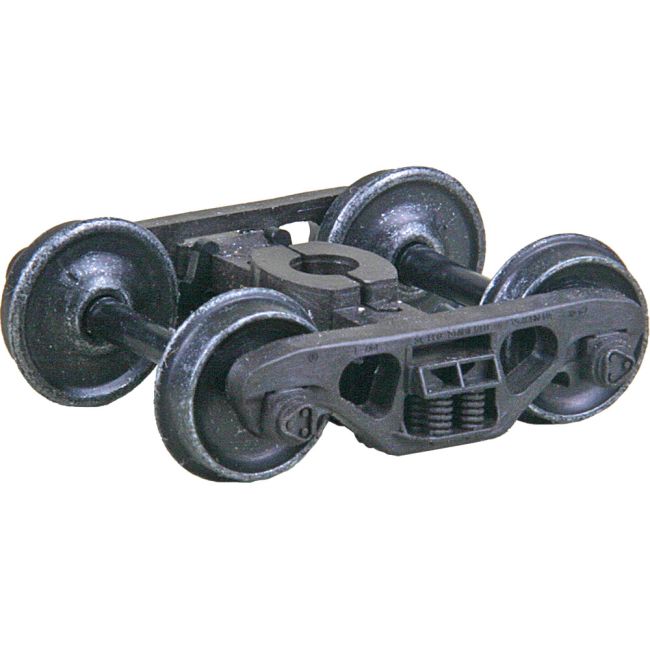

#1570 Barber® S-2 70-Ton Self Centering Trucks with 33" Smooth Back Code 88 Semi-Scale Wheels - HO Scale
"HGC" Two Piece Fully Equalized Trucks



HO-Scale

#1570 Barber® S-2 70-Ton Self Centering Trucks with 33" Smooth Back Code 88 Semi-Scale Wheels - HO Scale
"HGC" Two Piece Fully Equalized Trucks

The Self-Centering Action trucks self align themselves parallel with the car for easier placement on track.

Mounts with a #2 or 2-56 screw.

Introduced in the late 1950’s - Used in interchange even today.

The Barber S-2 70-ton Roller Bearing truck is a logical development from the original friction bearing truck first introduced in the 1940's. Our truck is based on a prototype built in 1967, however, the basic design was first introduced in the late 1950's. The sturdiness of the Barber® S-2 truck is evidenced by the forty plus years it has rode the rails to date. A careful observer will spot these trucks in interchange use today. This truck can be used under almost any pre-1970 built 70-ton rolling stock.

"HGC" or High Gravity Compound, weighs nearly the same as Metal Trucks but with more detail & a 2 piece split bolster design for more efficient truck equalization, reduced axle friction for greater rolling performance.

#1570 Instructions (pdf)

Truck & Wheel Handout (pdf)

One Pair

UPC: 765484015703

USA Flag  Made in the U.S.A.

HO-Scale

"HGC" Two Piece Fully Equalized Trucks Features:

  • Self Centering Action - Trucks self align themselves parallel with the car for easier placement on track.
  • Code 88 (.088) #530 33" Smooth Back Wheels
  • "HGC" Weighs nearly the same as Metal Trucks
  • Superior Rolling Ability
  • #442 Brake Pads - Wide Bolster
  • Accurate Markings
  • Incredible Detail True to Prototype
  • Non-Magnetic Metal Wheels
  • Highly Flexible Fully Equalized Trucks
  • Smooth tracking Free Rolling Contoured Insulated Axles
  • RP-25 Free Rrolling Wheels
  • Patent number 7,434,518 B2

Package Includes:

  • (2) Each #1570 Barber® S-2 70-Ton Self Centering Two Piece Trucks (assembled)
  • (2) #442 Brake Pads - Wide Bolster
  • (2) Each Self Centering Bushing
  • (2) Each #2 Screw



The term Code 110 and Code 88 relates to the width of the wheels and has no relationship to track code. Code 110 wheels are .110" wide and Code 88 are .088" wide. Code 110 wheels are the common (or "Standard") width wheels and Code 88 are what is called "Semi-Scale" and are used when the modeler wants a more prototypical looking wheel width. Actual HO-Scale prototypical wheel width would be around .067" wide and although they will run OK on the average track they will not go through common turnouts and crossings. Code 88 (.088") is just about the minimum width of wheel that will run on most standard or common track if gauged correctly. It really is a matter of appearances because there's very little operational differences between running Code 110 or Code 88 wheels. Code 88 wheels look really good and are most noticeable on open frame cars like hoppers and tank cars. However, they also look great on boxcars, gondolas, and reefers but not quite as noticeable. As mentioned above track code and wheel code have no relationship meaning Code 110 and Code 88 will run on most any code of track. Track code is simply the measured height of the rail, code 100 is .100" tall, code 83 is .083" tall, code 70 is .070" tall, and so on.
